Wabco EBS Relay Emergency Valve 9710028050

Product Description

Cross References: Scania:1738442,DAF: 1664345 , Kogel: 6500287 , Krone: 5870375 , Renault: 5021170448
A cross reference listing means that this valve is a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required.

Wabco EBS Emergency Valve 971 002 805 0 Drawing: 9710028050.pdf


Wabco EBS Emergency Valve 971 002 805 0 Publication:

For the spare parts market, the trailer emergency valve 971 002 802 0 will be in case of pneumatic failure replaced by 971 002 805 0.

Pneumatic failures can be caused from:
Leakage in driving position at the exhaust   Contamination at the / or defective supply valve
Leakage in hand brake position   Contamination at the supply valve
Leakage over yellow coupling head   Mechanical defect inside the Trailer emergency valve

The 971 002 805 0 do not has electrical components.

Mounting dimensions and pneumatical ports are equal.

For the 971 002 805 0, depending on the software status of the TEBS a wiring harness with sensor and/ or pressure switch is required. (see also market info from 01.03.2004)

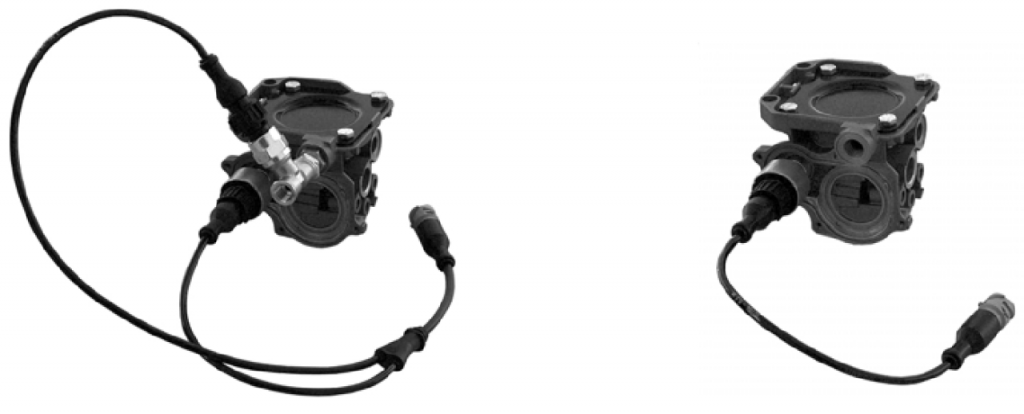

All trailer emergency valves are shipped with a information sheet showing wiring diagrams of both types of repair units.

The repair units are as follows:

971 002 921 2 with software status C1, C2

971 002 922 2 with software status C3, D

The 971 002 805 0 is for the Aftermarket only.

In case of pneumatical failures at the 971 002 802 0, the time of warranty starts with the production date.
