Firestone offers a complete line of Airide springs, with replacement springs available for virtually every air suspension system on the market today.
To be sure you choose the correct replacement air bag, we offer tips on identifying an air spring as well as a page illustrating the components of an air spring. Use them as a guide but feel free to give us a call to help you identify your spring.
Features and Benefits
- Require little to no maintenance
- Pressure tested for quality assurance
- Increase towing and hauling capabilities
- Replace worn out oem air bags
- Increase life of other suspension components
- Spring Pro Bellows Number: TR8713
- Spring Pro bellows numbers are the actual air bag number. No more research is required to know what air bag you need.
- Goodyear Bellows Number: 566-26-3-078
- Replaces Goodyear Part Number: 1R13-176
- Firestone Bellows Number: 1T17CA-6.5
- Replaces Firestone Part Number: W01-358-8713
- Replaces: Hendrickson Trailer S22948 (Van Traax)
- Cross References: 1R13176, 566263078, C22948, C-22948, S-22948, 8533, S22948, 1R13-176, 10 10-16 S 533, 1010-16S533, 101016S533, W01-358-8713, W013588713, 1T17CA6.5

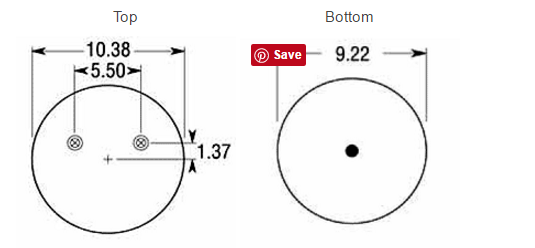

A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
