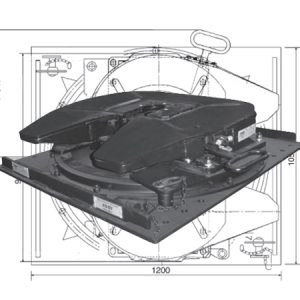

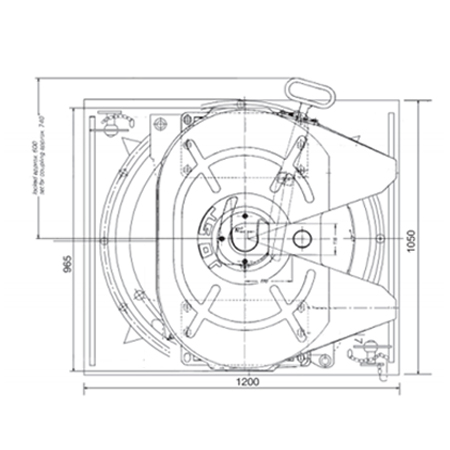

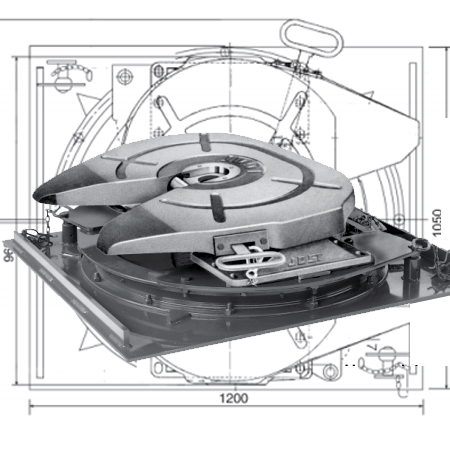

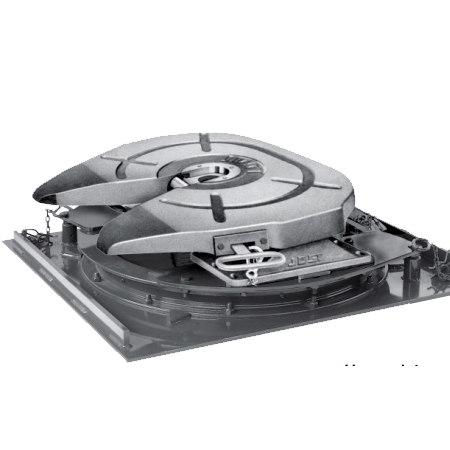

Replacement Jost DR 38 C – Heavy duty fifth wheel couplings 3.5” and 2”

Product Description

Models/Types:
DR 38 C-1, DR 38 C-1/160
DR 38 C-2, DR 38 C-2/160

Specifications:

• 26,000 kg imposed load
• Weight 472 kg (with 16mm base plate)
• Rubber mounting
• DR 38 C-1 types fit 3.5″ King pins
• DR 38 C-2 types fit 2″ King pins
• Height option 1: 308 mm(with 190mm feet)
• Height option 2: 278 mm(with 160mm feet))

CRN/ Rating:

24843 D-Value 260 kN (DR 38 C1 types)
24841 D-Value 216 kN (DR 38 C2 types)

Applications:

• Stock crates
• Fridge vans
• General frieght
• Tankers

Features:

• Twin lockouts.
• Flush bolt heads on mounting plate in chassis mounting zone.

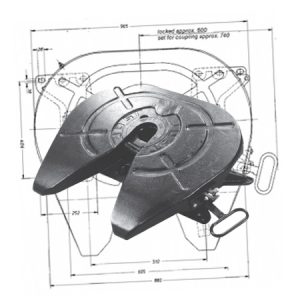

• Cast type unit equipped with JSK 38 fifth wheel extra heavy duty unit. Jaws sizes can be changed from 50 mm or 90 mm diameter.
• Mounting must be carried out in accordance with our instructions.
• dr38c.PDF

Note: We could design and produce any type of fifth wheels as per customers’ drawings and samples
