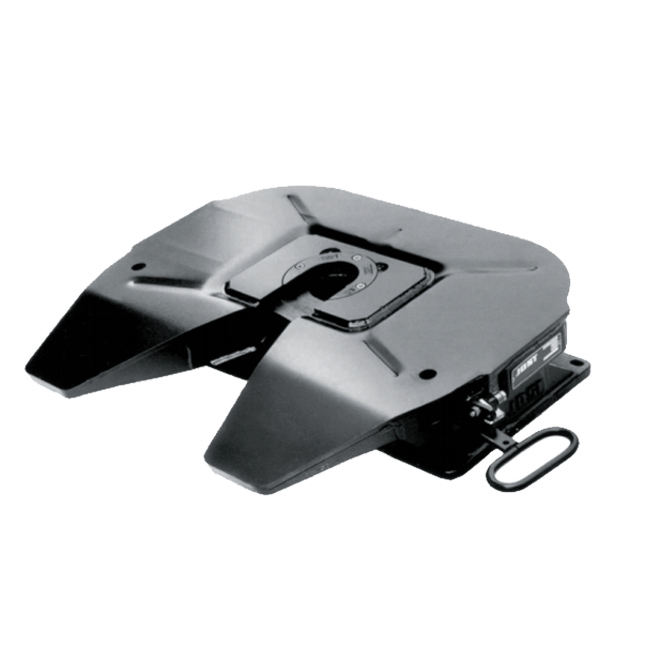

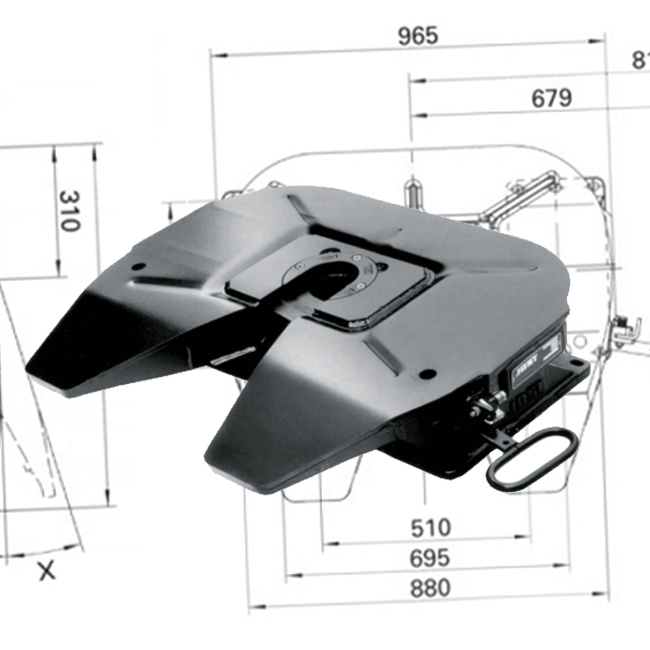

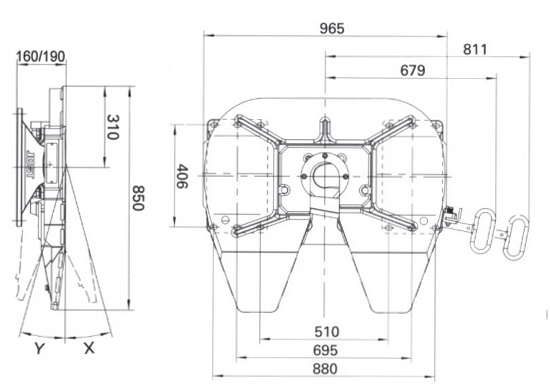

Heavy duty fifth wheel couplings 3.5” – Replacement Jost JSK 38 DV90

Product Description

Rubber bearingSpecifications:

• 28,000 kg imposed load
• Weight 204 kg

CRN/ Rating:

36688 D-Value 260 kN

Features:

• With rubber bearing (model “C”): rubber cushions are shockabsorbent and maintenance-free.
• The fifth wheel coupling complies with the directives/standards as per 94/20/EC – Class S, DIN 74084 and ISO 3842. Suitable for 3,5” (90) king pins as per 94/20/EC, DIN 74083 and ISO 4086. Fitted on a mounting plate.
• Jost jsk38dv90.pdf

Note: We could design and produce any type of fifth wheels as per customers’ drawings and samples
