Firestone W01-358-8197 Air Springs – Rolling Lobe Airbag (Replaces Neway 90557230 and Goodyear 1R12-562 Air Spring)

Product Description

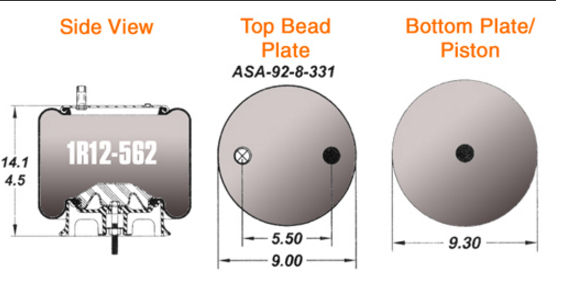

1r12-562-goodyear-air-spring
280-hardwarekey

This air bag uses one of the most popular rubber bellows in the trucking industry. It is important to check all of the measurements carefully if you are replacing a Firestone, Goodyear, or Contitech air bag.We stock several of the air bags that use this rubber bellows: 280-8197, 280-8204, 280-9053, 280-9105, 280-9325, 280-9365, and 280-9366

A Goodyear sleeve air spring will employ a flexible member without an internally molded bead. The flexmember is attached to the end of the retainers by pinching the material between the ends and the exterior crimp rings which are then adjusted to the proper diameter. There are many applications for Goodyear sleeve style airbag springs. The most common uses are ride springs for passenger cars and truck, isolators and springs for truck cab suspensions and seat springs, as well as many commonly seen industrial applications. 1R12-562 Goodyear Super-Cushion ® Air Spring will give your truck, trailer, or bus a long lasting durability and productivity to the air suspension with years of maintenance free service.

  • Manufacturer: Spring Pro
  • Spring Pro Bellows Number: 888197
  • Goodyear Bellows Number: 566-24-3-067
  • Goodyear Part Number: 1R12-562
  • Firestone Bellows Number: 1T15M-2
  • Firestone Part Number: W01-358-8197
  • Top Plate Hole/Stud: 2
  • Bottom Plate Hole/Stud: 1
  • Top Plate Diameter: 9
  • Bottom Plate Diameter: 9.3
  • Collapsed Height: 4.5
  • Flexmember: 566-24-3-067
  • Piston: 566-20-7-251
  • Piston Type: C
  • Replaces: Neway 90557230

Cross References: 90557230, 1R12562, 1R12-562,
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
