22.5″ x 8.25″ Rim -8 Lug on 285.75mm Semi-Polished Dual Wheel

Product Description

This 22.5″ x 8.25″ steel trailer wheel has a 8 Lug on 285.75mm . ±169MM Offset allows wheel to be used as either the inner or outer wheel of a dual-wheel setup. Rust-resistant 3-step powder coat. Valve stem is included.

Features:

  • Heavy-duty wheel is designed for use on dually trucks, buses, and trailers
    • Offset allows wheel to be used as either the inner or outer wheel of a dual-wheel setup
  • Steel wheel with 4 hand holes is sturdy and corrosion resistant
    • 3-Step finishing process includes zinc phosphate bath, e-coat primer, and silver powder coat on both sides of wheel
  • Center disc is spun-formed from fine-grained steel and welded into place for strength and durability
  • Hub-piloted wheel requires the use of flange nuts (sold separately) for installation

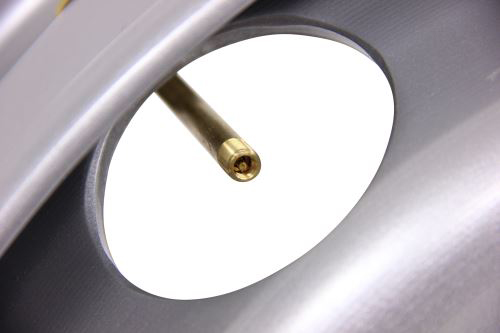

  • Metal valve stem is included
  • Wheel meets SAE J1204 standards

Specs:

Hub-Piloted Dual-Mounting (Two-Piece Flange Nut) fits most newer Trailers or Freightliner, Volvo, or International Trucks

  • Rim dimensions: 22.5″ diameter x 8.25″ wide
  • Bolt pattern: 8 on 285.75 mm (8 on 10.83″)
  • Offset: 169mm
  • Center Bore: 221
  • Bolt Circle: 275mm
  • Bolt Holes: 8
  • Hand Holes: 4
  • Max Load: 7300 lbs.
  • Mounting Tyre:11R22.5
