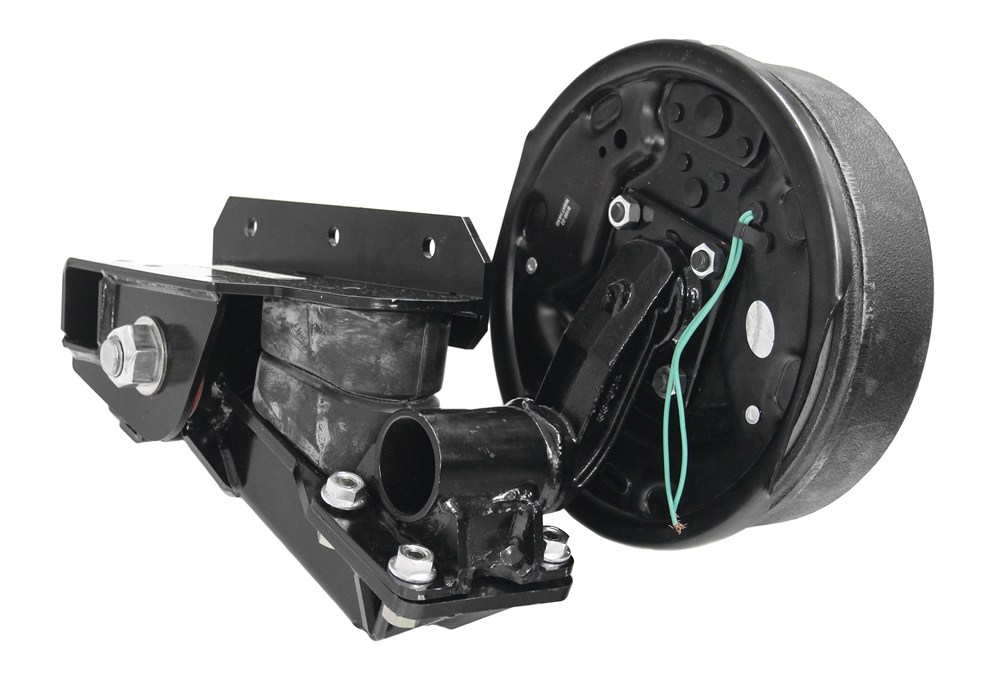

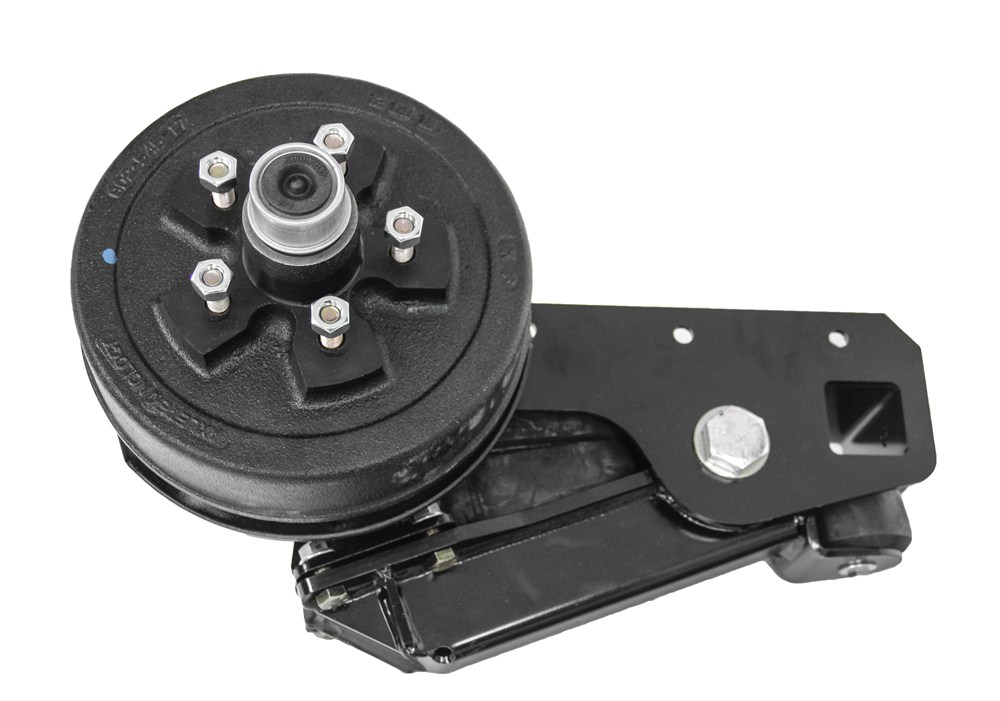

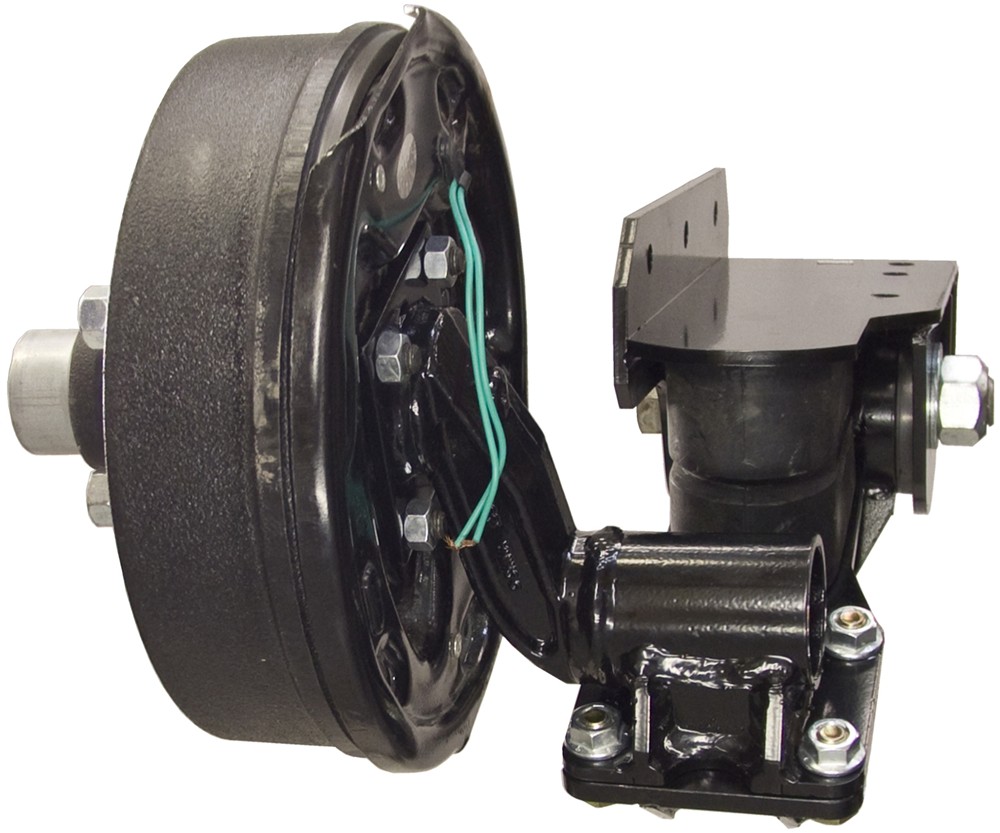

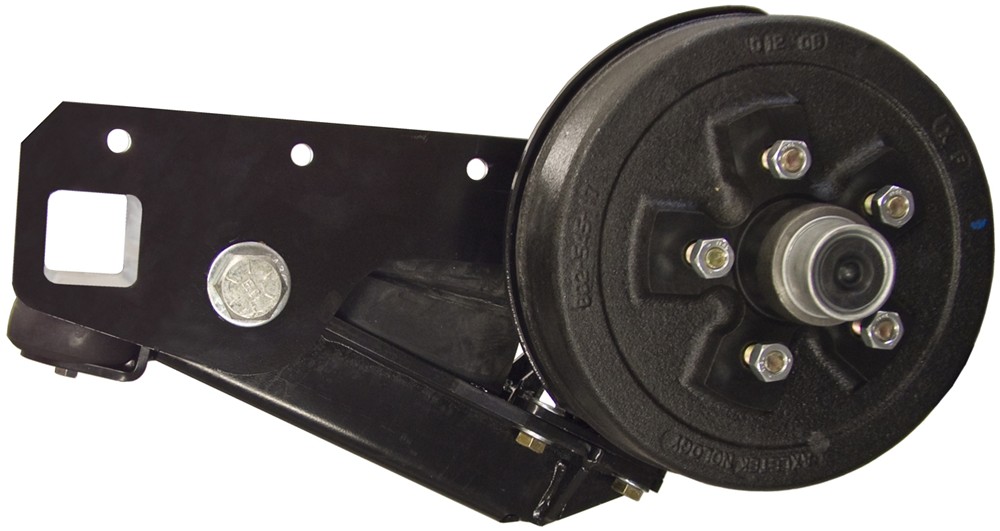

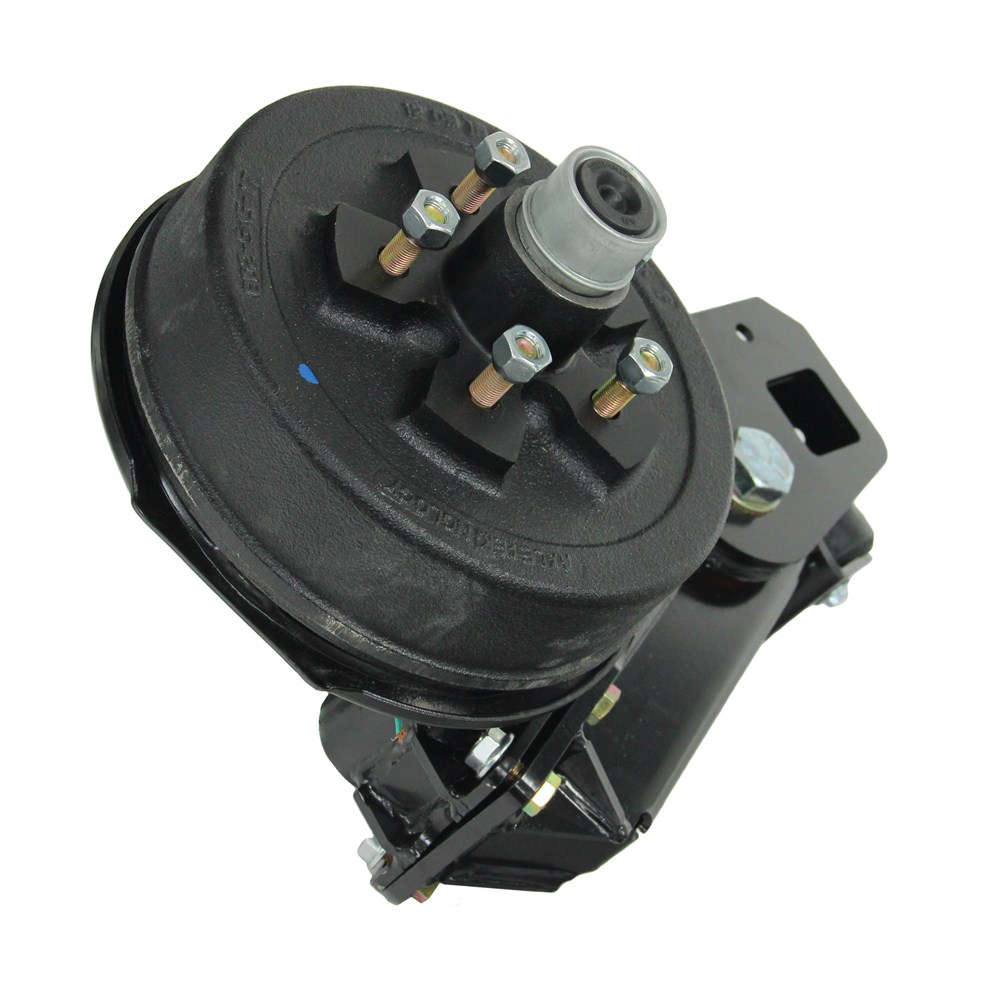

Timbren Half Axle Suspension Parts Electric Brake Hubs

mail to : wabco@wabco.cn

Product Description

The Axle-Less system provides a smooth, quiet, safe ride and can eliminate the need for an axle. Suspension units replace your existing axle and operate independently. The 4″ drop spindle allows for a low deck height. Fits any frame width.

  • Fits: 1-axle and 2-axle trailers that use regular tires
    • Not recommended for triple-axle applications
  • Bolt pattern: 5 on 4-1/2″
  • Weight capacity: 3,500 lbs
  • Quantity: 2 suspension units with electric brake hubs
  • Spindle/Hub compatibility:
    • Bearings: L68149 inner, L44649 outer
    • Races: L68111 inner, L44610 outer
    • Seal: 10-19
