Posted on

Where Buy Cheapest Haldex or MGM Brake Chamber

  • Combination – Size 3030
  • Weight: 20.3 lbs., 9.2 kg each
  • Stud Type: 5/8-11 UNC Grade 5
  • Stud Length: 1.50 in. (38.1mm)
  • Pushrod Thread: 5/8-18 UNF
  • Air Port Threads: 3/8-18 NPTF

Replaces 3030017, MA15431, MA15445, MA15449,Volvo 85107268, 20714872, 20714873, 24424207, 3130516, 85107267
3030 brake chamber has a fully threaded shaft for maximum adjustability and includes mounting hardware, clevis and cotter pin.
Spring brake chamber is permanently sealed for increased safety
Includes spring brake cage bolt
Includes clevis for attachment to slack adjuster
Advanced powder coating process

Mack®, Freightliner®. International®, Kenworth®, Volvo®
Leader in the research, development, and distribution of a broad range of truck and trailer parts.

Posted on

Why do you like nylon winch straps?

synthetic-winch-rope-care-maintenance-001

The synthetic materials industry has made its way to boat winches, and we’re happy they’re here! While steel rope still has its purpose for some winches, boats can often get by with its modern nylon compatriot in their winches.

Why do we like nylon winch straps?

The material is lightweight and easier to wind. Even heavy duty straps are reasonably light, like this one that has a 10,000-pound break strength and 3,300-pound working load and only weighs eight pounds! Unlike steel rope, it is less likely to get odd kinks as it is wrapped around the drum and this in turn lessens the probability of odd internal wearing.

What are the negatives of nylon winch straps?

Nylon winch straps are more prone to wear from the elements and from constant abrasion. Regularly checking the strap for fraying and tearing will prevent an accident the next time you use your winch, and will give you a nice heads up for knowing when you need to purchase a new one.

winchline-27

What is a socket wrench used for?
A socket wrench is most commonly a handle with a 90 degree ratchet, along with a set of cylinder shaped “sockets” of various sizes. The sockets fit onto the ratchet by way of a square nub. You can set the ratchet to either tighten or loosen, then keep the socket in place on the nut while you turn the handle.Mar 7, 2012
Trailer Winch Strap Replacement:

winchline-28

Posted on

10 Simple Steps for Ordering Custom Torsion Springs

Wabco is your source for a wide range of stock and custom spring designs. If your torsion spring needs don’t fit within our stock selection, ordering custom torsion springs is easy with our interactive torsion spring order form. As a qualified and experienced spring supplier, Wabco offers you the advantages of:

  • A wide range of stock springs
  • Full custom fabrication capabilities
  • Online ordering or personal assistance on custom orders
  • Quotes and answers the same day requested
  • All products manufactured in the USA

10 easy steps will enable you to order a quote for the custom torsion springs you need. In most cases, your finalized custom torsion springs order will ship within 3 to 10 days of confirmation.

  1. Choose the Type of Material – Music Wire, Hard Drawn MB, Oil Tempered Wire, Stainless Steel (202), Phosphor Bronze, Brass (or specify other)
  2. Specify the Wire Diameter – ranges are available from .008″ to .500″
  3. Indicate the Inside or Outside Diameter of the Finished Spring
  4. Relationship of Legs – 90 degrees, 180 degrees, 270 degrees, 360 degrees (or specify other)
  5. Number of Coils – should end in 1/4 if 90 degrees, 1/2 if 360 degrees, 3/4 if 270 degrees or an even number if 180 degrees
  6. Specify Length of Leg #1 and #2
  7. Direction of Wind – Right Hand or Left Hand
  8. Select a Spring Finish – Plain, Zinc Plate, Black Oxide, Shot Peen, Passivate, (or indicate other)
  9. Specify the Desired Quantity Range
  10. Enter your Contact Information & Submit

Our online custom torsion spring order form also allows you to provide additional application-specific details, such as temperature requirements. Additional information you can provide will help our team supply you with an extension spring that works and is most cost effective.

We recommend speaking with one of our design specialists for first time orders or new modifications to existing torsion springs.

Posted on

The multi leaf and the parabolic leaf spring technical

TRA-American-Leaf-Spring-BlackThe multi leaf spring design is based on the use of a flat trapezoid geometry, with cut leaves stacked one on top of the other. This leads to a multi leaf design with different lengths of each leaf. When a multi leaf spring deflects the leaves move relative each other. The contact between the leaves produces a friction between them, which leads to a difference in load between compression and decompression. The longest leaf has two eyes for assembling to the vehicle body. The strength of this leaf and the eyes are critical and sometimes the second leaf will have safety loops which hook around the main eye as a back up in case of failure. The centre of the spring is normally fixed to the vehicle axle with U-bolts.

leaf_manuf

The parabolic spring is designed for low internal friction and lowest possible weight and consequently has fewer leaves. The leaves are partly given a parabolic shape from the centre to the end of the leaf, which gives an equal bending stress level along the parabolic part. This ensures efficient use of material and minimum weight. The shape of the leaves are such that contact between the leaves only exists at the centre and the ends. And since the centre of the leaf spring is fixed to the axle with U-bolts, the only friction comes from the end contacts. Rubber pads are also sometimes used to lower the friction. As with multi-leaf springs, the strength of the eyes is a critical safety factor.

Leaf springs can be divided in to three broad areas:

– Preparing leaves

– Bending – heat treatment – shot peening

– Assembling – presetting – surface treatment

Trailer-Leaf-Spring_1

Leaves for multi-leaf springs are prepared by cutting and stamping whilst parabolic leaves are hot rolled in a purpose-made rolling machine. The ends of the main leaf are heated and the eyes are then hot rolled. The leaves are heated and individually bent to the correct arc radius and, whilst still clamped between the bending tool, each leaf is quenched in oil to receive high strength and the correct shape. Parabolic leaves also have an arc radius but are however normally straight in the thicker central section. The leaves are finally tempered for high material toughness and strength.

After cooling, the shot peening process is necessary for all parabolic leaves. For multi-leaf springs however, it is normally only the two safety-critical leaves that require shot peening. The bushes are pressed into the eyes and the stack of leaves is assembled. Positive stresses are then introduced in to the spring by a pre-stressing process.

The multi leaf surfaces are protected against corrosion by painting of the outer surfaces and by lubrication between each leaf. Parabolic leaves are individually painted on all surfaces.

Posted on

Selecting Proper Trailer Axle Assembly

Before selecting an axle assembly for your application or local market, we suggest you consider the necessary specifications below:



axle

• Load Capacity: The load rating of the axle must support the maximum gross vehicle weight rating (GVWR). For multiple axle trailers, divide the GVWR by the number of axles to determine the minimum load capacity of each axle.
• Brake Drum: The area of the brake lining is the key factor that influences the brake system. Make up your mind on what you want for the diameter of the brake shoes and the width of the brake lining.
• Axle Style: People from different places may have different habitual preference for axle style. German axles and American axles may differ in beam shape (round or square), spindle size and some other specifications. Determining right specifications is especially important when reusing existing hubs or drums.
• Track Length: Measure your axle track length by determining the distance between the center of one tire to the center of the other tire.
• Spring Centers: Measure the distance from the center of one spring to the center of the other.
• Overall Length: Measure the distance from the very end of an axle’s spindle to the very end of the opposite spindle.
• PCD: This is important for axle assembling. The PCDs of the brake drum and the hub have to be the same.

Posted on

What is the relay valve ?

relay valve is an air-operated valve typically used in air brake systems to remotely control the brakes at the rear of a heavy truck or semi-trailer in atractor-trailer combination. Relay valves are necessary in heavy trucks in order to speed-up rear-brake application and release, since air takes longer to travel to the rear of the vehicle than the front of the vehicle, where the front service brakes, foot-valve, parking-control valve, and trailer-supply valve (if applicable) are located.

In a truck’s air brake system, relay valves get a signal when a driver presses the treadle, which then opens the valve and allows air to enter the brake chamber via air inlet. The diaphragm gets pushed, then the rod, then the slack adjuster which twists to turn the brake camshaft. Next, it moves the disc, wedge or s-cam, which pushes the brake shoes and lining, creating friction. This friction slows and eventually stops the brake drum’s turning, which stops the wheel.

Relay valve Popular product:

Posted on

Hard to Find Leaf Springs for Classices Cars at New Truck Spring

You may have heard of the old saying, “They don’t make them like they used to anymore!”

In part, this is quite true when it comes to the automotive industry. Earlier cars were considered a luxury for only the rich, and they weren’t mass-produced on the level that they are today. Resources were plenty and the demand for such vehicles for those who could afford it was substantial, but for today’s numbers, the ownership of classic cars are still quite low.

As a result, the materials used back then were heavier, bulker, and today—expensive! What’s more, when it came to the smaller parts of the vehicle like the suspension system, inventors were still in the earlier stages of discovering what makes up a smoother ride—and in essence, still are today!

The Challenge of Finding Replacement Parts

Whether you want to refer to these earlier cars as old or classic, the truth somewhat remains that indeed, they don’t make them like they used to! So for car collectors and classic car owners who may have received their treasure through an inheritance, an auction, or the sheer luck of stumbling upon it in a junkyard, chances are you’re probably having a challenge finding replacement parts for your leaf spring.

The chances are quite slim that you’ll find leaf springs for a classic car at your local automotive store. Even if you’ve gotten by with combing junkyards for parts, when it comes to classic cars, you won’t have much luck. Even if you contacted the manufacturer, the response that you’ll most likely get is that particular model is obsolete and yes, they don’t make them anymore!

So if the manufacturer doesn’t make leaf springs for their earlier models, and finding replacement parts makes finding a needle in a haystack look easy, what exactly are your options? You could, like most ex-classic car owners, scrap the parts out and sell the material, or you can call New truck Spring, a leaf spring replacement and manufacturing company in New Century, KS.

About New truck Spring

New truck spring belongs to Wabco group which is a leading supplier in auto parts. Our headquarters is located in Xiamen.

We own several factories and joint-ventured manufacturers in China which are successfully certified with TS16949 and ISO9001/2009 quality control system.

With more than 10 years’ development, we can supply a full range of spare parts for full trailers, semi-trailers, heavy & light duty trucks agricultural machines and engineering machines. Our main Products are Leaf Spring, Coil Spring, Wheel Rim,Landing Gear,Trailer Jack,Jockey Wheel, Axle, Mechanical Suspension, Air Suspension, Agricultural Suspension, Bogie Suspension,Turntable, Fifth Wheel, King Pin, Brake Chamber, Container Lock, Coupling, Towing Eye, Drum, Hub, Mudguard, Lamp, Excavator Bucket, Bucket Teeth, Track Link, and other Chassis Parts.

With our advanced technology and professional team, we can supply high quality products with competitive price and best service.Being an OEM and after market service supplier, our sales network covers North America, South America, Europe, Middle East,Africa, Southeast Asia and Oceania. Our products enjoy a high reputation in the market. Warmly welcome all over the world friends to visit our Xiamen showroom and our factories to set up a long-term cooperation relationship.

New Truck Spring Inventory

We stock leaf springs for Chevy, Ford, Dodge, Plymouth, Chrysler, Oldsmobile, Mercury, Mazda, Jeep, Toyota, AMC, GMC, and Suzuki Samurai. Because we are the leading authority in leaf spring replacements, we have competitive prices that rival other distributors, giving you the best price possible. We also ship our suspension parts out anywhere in the United States. For quality assurance, we check each product before it’s shipped out to make sure that there’s no damage to your purchase.

Posted on

Trailer Wheels : What You Need to Know?

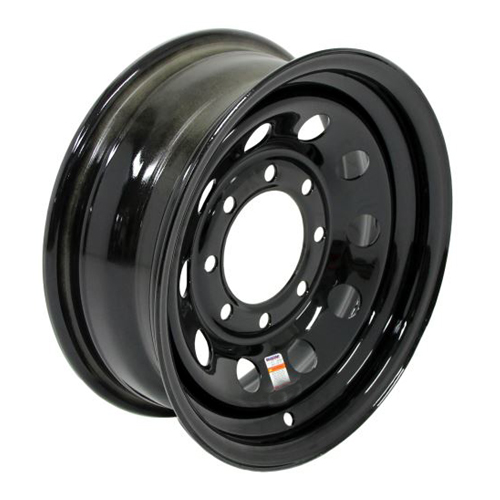

Painted Steel Trailer Wheels
:
Painted high speed tubeless trailer wheels with 4 or 5 hole bolt patterns are perfect for landscape, utility and boat trailers hauling boats that will be used primarily in fresh water. The 8″ and 10″ trailer wheels are the ‘Standard Solid’ design, while the 12″ – 16 wheels are of the 8-Spoke or modular style. Valve stems are sold separately.

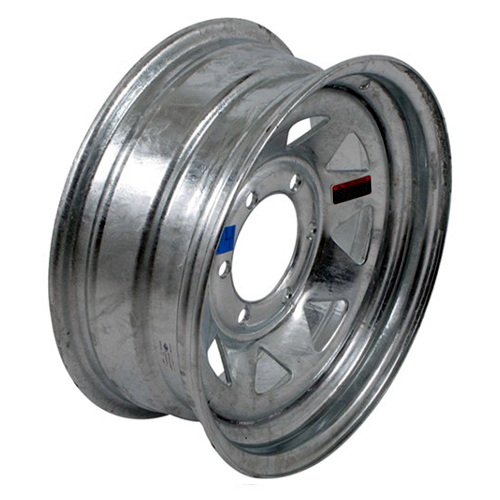

Galvanized Steel Trailer Wheels:
Galvanized high speed tubeless trailer wheels with 4 or 5 hole bolt patterns are perfect for boat trailers hauling boats that will be used primarily in salt or brackish water. Galvanizing helps to inhibit corrosion and rust formation which makes them the perfect wheel for salt water applications. Galvanized wheels are also recommended for utility and landscape trailers that are used near the ocean. The 8″ trailer wheels are the ‘Standard Solid’ design, while the 12″ to 16″ wheels are of the 8-Spoke or modular style. Valve stems are sold separately.

Aluminum Trailer Wheels:Aluminum wheel upgrades not only look great but are also used and proven to add perceived value to trailers. All of our aluminum wheels are clear coated to keep that new wheel look and most have zero offset to prevent any rubbing under the fender or protruding out from the fender. The 10″ aluminum trailer wheels are available in a ‘Modular Type’ design and the 12″ through 16″ are available in the ‘Black Star’, ‘Spoke’, ‘Split Spoke’ and ‘Modular’ designs with 5 or 6 hole bolt patterns. Valve stems, center caps and lug nuts are sold separately with ALL aluminum wheels.

Trailer Wheels 17.5″ & Larger: These rims go up to sizes of 24.5″ with capacities over 10,000 lbs and come in Gray, White or Aluminum configurations. Most wheels are known as a Dual or Dually wheel which basically means that the wheel is designed to be used along with another on the same hub. Most dual wheels can function as either the inside or outside wheel depending on how you face the rim.

Agricultural Wheels: Agricultural Wheels from Rockwell Americana are offered in a variety of different diameters, widths, bolts patterns, pilot holes and offsets. With all of these variables it is important to be sure that the correct one is ordered. Agriculture rim are designed for free wheeling applications and have a maximum speed of 20 mph. Excessive speed, use on rough terrain or a hillside can reduce the over all weight capacity listed.

Posted on

The advantages and disadvantages of leaf spring

The advantages of leaf spring:

in the structure of leaf spring composition is relatively simple, relatively low cost of manufacture, and easy maintenance, it not only played the role of shock absorption buffer, as well as the effectiveness of guidance agencies; so the use of leaf springs more widely , Trucks, buses, sport utility vehicles, vans and pickups are very useful.

The shortcomings of the leaf spring:

The structure is only applicable to non-independent suspension, the use of certain limitations; leaf spring by the name suggests is a combination of steel, the overall quality and stiffness are great, resulting in relatively poor comfort , The vertical size is too long, is not conducive to shortening the car before the overhang and rear suspension, in addition to the framework of the steel leaf spring connection is also very easy to wear.

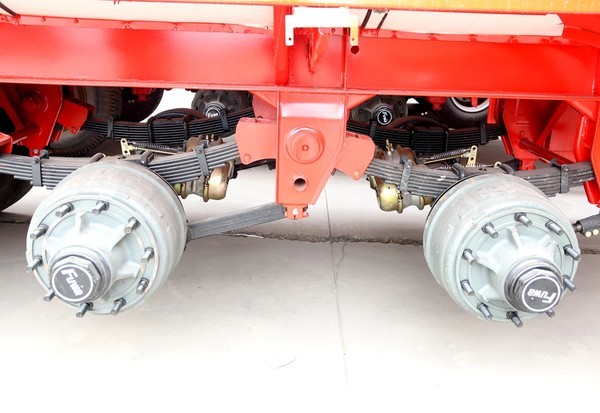

277715

With more than 10 years’ development, we can supply a full range of spare parts for full trailers, semi-trailers, heavy & light duty trucks agricultural machines and engineering machines. Our main Products are Leaf Spring, Coil Spring, Wheel Rim,Landing Gear,Trailer Jack,Jockey Wheel, Axle, Mechanical Suspension, Air Suspension, Agricultural Suspension, Bogie Suspension,Turntable, Fifth Wheel, King Pin, Brake Chamber, Container Lock, Coupling, Towing Eye, Drum, Hub, Mudguard, Lamp, Excavator Bucket, Bucket Teeth, Track Link, and other Chassis Parts.

We could design and produce any type truck & Trailer & Car leaf spring as per customers’ drawings and samples. Tell us what you need or were expecting to find. Don’t forget to include your email address if you’d like a reply from us.—Mail To: info@tinmyautoparts.com

Posted on

Precautions for maintenance of the leaf spring

Driver in the course of the use of vehicles, may be damaged leaf spring break the emergence of course, because the use of leaf springs for a long time, there is the phenomenon of fracture This is normal, but if it is early damage from the root should be due to Abnormal use and maintenance caused. In the following for a Driver summed up a few leaf spring in the use of precautions.

277715

1. Truck drivers in the usual should pay more attention to leaf spring maintenance, lubrication should be carried out regularly to prevent the lack of lubrication caused by shock absorber failure.

2. In the usual maintenance process should also pay attention to horse bolts, center bolts fastened to prevent the damage caused by the steel plate spring bolt loosening.

3. The number of leaf spring is closely related to the rated load of the vehicle. When the vehicle is often under overload or partial load, the fatigue strength of the leaf spring will be reduced and the service life of leaf spring will be reduced.

4. In order to extend the life of the leaf spring, should avoid running too fast, especially in the rugged road driving, the speed will lead to excessive acceleration of steel leaf spring fatigue and damage.

5. When driving to minimize the emergency brake, otherwise it will let the leaf spring to withstand greater bending stress and tensile stress; In addition, when turning, the speed is too fast, will increase the outer Truck leaf spring load, speed up Damage to leaf spring.

277692

We could design and produce any type truck & Trailer & Car leaf spring as per customers’ drawings and samples. Tell us what you need or were expecting to find. Don’t forget to include your email address if you’d like a reply from us.—Mail To: info@tinmyautoparts.com

Posted on

Popular Replacement Leaf Springs For Trailer

Popular Replacement Double-eye Trailer Leaf Springs

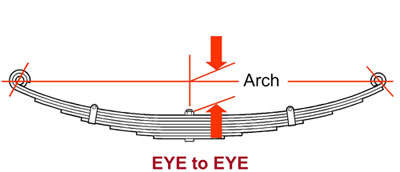

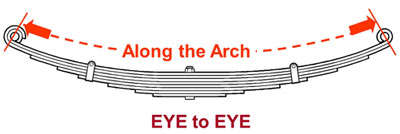

Double-eye or eye/eye trailers springs are all 1-3/4 inches wide and range in length from 18 to 30 inches and with trailer spring capacity ranging from 300 to 4,000 lbs.Eye diameter with bushing 9/16″ and Eye diameter without bushing: 11/16″.
Double-eye leaf springs attach to hangers that are welded onto your trailer. One end of this spring will attach directly to the hanger with a suspension bolt.Leaf springs are an integral part of your trailer suspension system. The leaf springs provide the attachment points for your trailer’s axle, suspending it from the frame of your trailer. Each spring flexes to absorb road shock as you travel, allowing the axle to move somewhat independently of the rest of your trailer. This helps to reduce wear and tear on the trailer and also ensures a smooth ride. The other end will attach to shackle straps that are suspended from a hanger. These straps allow the spring to move and pivot so that it can better compensate for uneven pavement. If you have a tandem- or triple-axle trailer, the shackle straps will be attached to the equalizer that connects multiple springs. Popular Models include:
  • Width:1.75 inches
  • Steel Thickness:.323 inch
  • Free Length (C):20.00 inches
  • Arc (A):11.10 inches
  • Length (B):11.10 inches
  • Free Open (H):3.25 inches
  • Capacity:1,500 lbs. each

2.UNA034 Double-Eye Trailer Leaf Spring

  • Width:1-3 / 4″
  • Steel Thickness:0.291″
  • Arc (A):14.5″
  • Length (B):19.5″
  • Free Len.(C):32″
  • Free Open (H):4.25″
  • Width:1.75 inches
  • Steel Thickness:0.259 inch
  • Free Length (C):19.92 inches
  • Arc (A):10.75 inches
  • Length (B):10.75 inches
  • Free Open (H):3.25 inches
  • Width:1-3 /4″
  • Steel Thickness:3/8″ and 5/16″
  • A:25-1/4″
  • B:3″
  • C:12-5/8″
  • Arc (A):11.13 inches
  • Length (B):11.13 inches
  • Free Length (C):20.50 inches
  • Free Open (H):3.35 inches

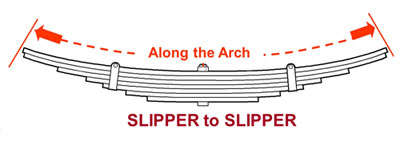

Popular Replacement Flat End Slipper Tailer Leaf Spring

Open trailer Flat End slipper springs are sometimes referred to as C-Hook trailer springs. They are 1-3/4 inches wide and have a capacity ranging from 1,500 to 2,750 pounds.

Flat End Slipper leaf springs attach to hangers that are welded onto your trailer. The eye of this spring will attach to the front hanger with a suspension bolt.The Flat End Slipper leaf springs provide the attachment points for your trailer’s axle, suspending it from the frame of your trailer. Each spring flexes to absorb road shock as you travel, allowing the axle to move somewhat independently of the rest of your trailer. This helps to reduce wear and tear on the trailer and also ensures a smooth ride.Popular Models include:

1.UNA-179 Trailer Slipper Spring w/ Flat End

  • Width:1-3/4″
  • Steel Thickness:1/4″
  • Dim. A:11″
  • Dim. B:24-5/8″
  • Dim. C:12″
  • Dim. D:14-1/2″
  • Dim. E:3-3/4″

2.72-77 Trailer Slipper Spring w/ Flat End 30″ Long

  • Width:2-1/2″
  • Dim. A:30″
  • Dim. B:26-7/8″
  • Dim. C:4″
  • Eye diameter: 7/8″
  • Dim. D:13-1/2″

Popular Replacement Hook End Slipper Trailer Springs

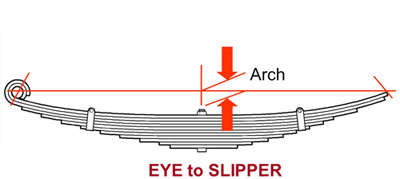

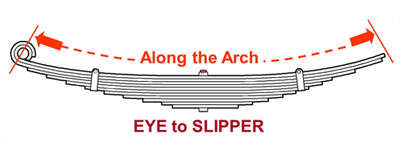

Hook End Slipper Trailer springs with an eye on one end and a downwards hook on the other end. They range in widths of 1.75 to 2.00 inches. The weight capacity ranges from 750 up to 4,000 pounds.Spring flexes to resist shock and also ensures a smooth ride. Includes bushing with 9/16″ inner diameter.

Hook End Slipper leaf springs attach to hangers that are welded onto your trailer. The eye of this spring will attach to the front hanger with a suspension bolt. The hooked slipper end of the spring will slide into the rear hanger. If you have a tandem- or triple-axle trailer, the slipper end will slide into the equalizer that connects multiple springs. The shape of the slipper end of a leaf spring may vary slightly due to differences among trailer manufacturers. Because of this, it’s important to check your leaf spring’s slipper end before purchasing a replacement spring.This helps to reduce wear and tear on the trailer and also ensures a smooth ride.

Popular Models include:

1. UNA160  Hook End Slipper Trailer Leaf Spring

This 4-leaf slipper spring is 26-1/8″ long x 2″ wide. It is designed for use on trailers with 5,000-lb axles.Replaces E5226

2.UNA285 Hook End Slipper Trailer Leaf Spring

Slipper leaf spring acts as part of a trailer’s suspension system by providing an attachment point for an 8,000-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushing with 9/16″ inner diameter

Popular Replacement Open Eye Slipper Trailer Springs

Open trailer slipper springs are sometimes referred to as C-Hook trailer springs. Each spring flexes to absorb road shock as you travel, allowing the axle to move somewhat independently of the rest of your trailer. This helps to reduce wear and tear on the trailer and also ensures a smooth ride.They are 1-3/4 inches wide and have a capacity ranging from 1,500 to 2,750 pounds.

Popular Models include:UNA264 Open Eye End Slipper Trailer Leaf Spring,This 4-leaf slipper spring is 26-1/4″ long x 2″ wide. It is designed for use on trailers with 4,300-lb axles.

Popular Replacement Open Eye Slipper Trailer Springs

Open trailer slipper springs are sometimes referred to as C-Hook trailer springs. They are 1-3/4 inches wide and have a capacity ranging from 1,500 to 2,750 pounds  The Open slipper leaf springs provide the attachment points for your trailer’s axle, suspending it from the frame of your trailer. Each spring flexes to absorb road shock as you travel, allowing the axle to move somewhat independently of the rest of your trailer. This helps to reduce wear and tear on the trailer and also ensures a smooth ride.Popular Models include: UNA252 Trailer Slipper Spring w/ Radius End,Slipper leaf spring acts as part of a trailer’s suspension system by providing an attachment point for a 10,000-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushing with 7/8″ inner diameter.
Popular Replacement  Semi-Trailer Trailer Springs  Product:

Slipper leaf spring acts as part of your trailer’s Hutchens suspension system by providing an attachment point for a 22,400-lb axle. Spring flexes to resist shock and also ensures a smooth ride.

  • Spring width: 3″
  • Steel Thickness:.7/8″
  • Length (A):22
  • Length (B):23-3/4
  • Spring Type: Medium Arch Tractor Trailer
  • Gauge Steel: 3/.788
  • Arch: 4-1/2″

2.Semi-Trailer TRA-693 Slipper Spring w/ Radius End

lipper leaf spring acts as part of your trailer’s Hutchens suspension system by providing an attachment point for a 20,000-lb axle. Spring flexes to resist shock and also ensures a smooth ride.

  • Spring width: 3″
  • Steel Thickness:.7/8″
  • Length from top of radius curve to top of hook curve: 42″
  • Dim. A:22-3/4″
  • Dim. B:38″
  • Dim. C:40.19″
  • Eye diameter: 7/8″

3.RA2726 Slipper Spring w/ Radius End leaf spring

  • SRI Number:TRA-2726
  • OEM Number:SP0354
  • Width:3
  • Length (A):22-1/2
  • Length (B):23-5/8
  • Arc (C):6

We could design and produce any type truck & Trailer & Car leaf spring as per customers’ drawings and samples. Tell us what you need or were expecting to find. Don’t forget to include your email address if you’d like a reply from us.—Mail To: info@tinmyautoparts.com



Posted on

Popular Replacement Leaf Springs For Truck,SUV,Pickup

Popular Replacement Leaf Springs For Truck

Truck Chevy leaf spring:

we are sure to have a leaf spring solution for you. Some of our more popular selling springs are the 2/1 replacement leaf spring for 1999-2009 silverado, as well as the 4/1 leaf spring for the silverado.

Let’s not forget the SUV’s. Tahoe, yukon, and suburban are all built with leaf springs, and unfortunately need to be replaced from time to time. The 22-403 is one of the more common chevy blazer leaf springs that we sell.

Many Chevy’s are built with not just rear, but front leaf springs as well. This component of the suspension is very important and your ride quality can suffer greatly when these leaf springs start to lose their tension and capacity. If you have a winch or a plow, consider some heavier springs for the front to accommodate for the load. A 22-402HD spring for the 73-91 K and V series is a perfect product for a situation like this.

Popular Chevy leaf spring product:

1.2/1 replacement leaf spring for 1999-2009 silverado

  • OEM No.:15033928
  • Width:2-1/2
  • PL-1 SE A:32
  • PL-1 SE B:32
  • Arch C:6-7/8

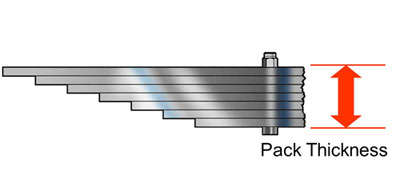

  • Pack Thck(D):1-3/4
  • No of Leaves:2/1

2.1969-1988 Chevy / GMC Blazer, Jimmy 4wd – Rear Leaf Spring

  • OEM No.:3941764
  • Width:2 1/2
  • PL-1 SE A:26
  • PL-1 SE B:26
  • Arch C:6 3/4
  • Pack Thck(D):2 1/4
  • No of Leaves:5/1

3.1973-1987 Chevy / GMC Blazer, Jimmy 4wd Leaf spring

  • Width:2 3/4
  • PL-1 SE A:23 1/2
  • PL-1 SE B:23 1/2
  • Arch C:1 1/8
  • Pack Thck(D):1 15/16

4.1969-1988 Chevy / GMC Blazer 4wd – Rear Leaf Spring 5/1 Leaves

  • OEM No.:3941764
  • Width:2 1/2
  • PL-1 SE A:26
  • PL-1 SE B:26
  • Arch C:6 3/4
  • Pack Thck(D):2 1/4
  • No of Leaves:5/1

5.1994 Chevy / GMC Blazer 4wd 2wd – Rear Leaf Spring 4/1 Leaves

  • OEM No.:15707516
  • Width:2 1/2
  • PL-1 SE A:27
  • PL-1 SE B:27
  • Arch C:5 5/8
  • Pack Thck(D):2

6.2008 Chevy / GMC Colorado 2wd 4wd – Leaf Spring Assembly

  • OEM No.:15137644
  • Width:2-1/2
  • PL-1 SE A:26
  • PL-1 SE B:26
  • Arch C:5-3/4
  • Pack Thck(D):1-1/2

7.1995-2005 Chevy / GMC S10 Blazer Leaf Spring Assembly

  • OEM No.:15689578
  • Width:2-1/2
  • PL-1 SE A:24 1/2
  • PL-1 SE B:27 1/2
  • Arch C:5-3/4
  • Pack Thck(D):1-1/2

8.1999 Chevy / GMC Silverado Classic 2wd/4wd – Rear Leaf Spring

  • OEM No.:15620357
  • Width:2-1/2
  • PL-1 SE A:32
  • PL-1 SE B:32
  • Arch C:7 3/4
  • Pack Thck(D):2 11/16

9.1999-2013 Chevy / GMC Silverado 2wd/4wd – Leaf Spring Assembly

  • OEM No.:15033928
  • Width:2-1/2
  • PL-1 SE A:32
  • PL-1 SE B:32
  • Arch C:6-7/8
  • Pack Thck(D):1-3/4
  • No of Leaves:2/1

10.2000-2013 Chevy / GMC Suburban 2500 2wd 4wd- Rear Leaf Spring

  • OEM No.:15752842
  • Width:2 1/2
  • PL-1 SE A:30
  • PL-1 SE B:30
  • Arch C:5 1/2
  • Pack Thck(D):2 15/16

Popular Dodge Truck Leaf Springs:

We carry a full line of leaf springs for Dodge trucks including Ram 1500, 2500, and 3500. Whether you just want to get some factory replacement springs or heavy duty springs for towing and hauling, we are your number one source for dodge suspension. Some of our more popular leaf springs for Dodge are the 3 leaf front springs for 1972-1991 4wd Dodge pickup as well as the rear leaf springs for a 98-2003 durango. Our dode springs are of OEM quality or better to ensure ride quality and durability.

The 34-163 leaf spring for 1972-1993 2wd Dodge is a common replacement on these vehicles. It is a 4/1 leaf spring that will give a capacity of 1,650 lbs per side. There are also other springs that could be in this vehicle and if you are not sure when identifying, feel free to give us a call.

Popular Dodge leaf spring product:

1.34-163 leaf spring for 1972-1993 2wd Dodge

  • OEM No.:3897281
  • Width:2 1/2
  • PL-1 SE A:24
  • PL-1 SE B:28
  • Arch C:6 1/4
  • Pack Thck(D):1 11/16

2.rear leaf springs for a 1998-2003 durango

  • OEM No.:52106325AF
  • Width:2 1/2
  • PL-1 SE A:24
  • PL-1 SE B:32
  • Arch C:7 1/2
  • Pack Thck(D):1 5/8

3.3 leaf front springs for 1972-1991 4wd Dodge pickup

  • OEM No.:3828910
  • Width:2 1/2
  • PL-1 SE A:24
  • PL-1 SE B:24
  • Arch C:1 3/8
  • Pack Thck(D):1 3/8
  • No of Leaves:3

4.Dodge Ram 2500 2wd 4wd for 1994-2002 leaf spring

  • Width:2 1/2
  • PL-1 SE A:28 1/4
  • PL-1 SE B:31 3/4
  • Arch C:6 5/16
  • Pack Thck(D):2 13/16

Popular Ford Truck leaf spring

If you are looking for replacement or heavy duty leaf springs for your Ford truck or suv, you have come to the right place. We have a full product line containing almost every HD and factory leaf spring that Ford trucks were made with. We provide everything from the 43-781 3/1 Ford Ranger leaf spring to larger truck springs like heavy duty 43-1289HD 10 leaf springs for F550. Many vehicles will have stock and super duty springs available for them.

Ford F150 leaf spring ,Ford F250 leaf spring ,Ford F53 Motorhome suspension springs are also very popular sellers on our site. Over time, the weight of an RV can have a negative impact on the capacity and resistance of your springs.

Popular Ford leaf spring product:

1. 43-781 3/1 Ford Ranger leaf spring

  • OEM No.:E3TZ5560G & E2TA5560CA
  • Width:2 1/2
  • PL-1 SE A:25 5/8
  • PL-1 SE B:31
  • Arch C:6
  • Pack Thck(D):1 1/2

2.43-1289HD 10 leaf springs for F550

  • PL-1 SE A:25
  • PL-1 SE B:30 3/4
  • Arch C:5 1/8
  • Pack Thck(D):5 5/16

3. 43-1813  3/1 Leaves leaf spring for Ford F250

  • OEM No.:9C3Z5560P
  • Width:3
  • PL-1 SE A:33 1/4
  • PL-1 SE B:33 1/4
  • Arch C:7
  • Pack Thck(D):2 9/16

4. 43-567 4/1 Leaves leaf spring for ford f150

  • OEM No.:D3TZ5560J / D2TZ5560KB
  • Width:3
  • PL-1 SE A:24
  • PL-1 SE B:31 1/2
  • Arch C:7 5/8
  • Pack Thck(D):1 3/4
  • No of Leaves: 4/1

5. 43-476 2/PD Leaves leaf spring for ford f250,f350

  • OEM No.:E0TZ5310R & E0TA5310ABA
  • Width:3
  • PL-1 SE A:23 7/8
  • PL-1 SE B:28 3/8
  • Arch C:1 15/16
  • Pack Thck(D):1 16/17

Popular Toyota Truck Leaf Springs

Popular spring replacements include Model 90-297HD the 3/1 Rear Leaf Spring for the 2005-2011 Toyota Tacoma. This replacement spring fits on the left or the right side and can be classified as a heavy duty spring as it offers 1,650 lbs of load support.

As a general rule of thumb, when you replace something as vital as suspension leaf springs in your Toyota Truck/SUV you should always look to replace the u-bolts to go along with the springs. The reasoning behind this is for additional safety and stability throughout your Toyota and without proper U-bolts the leaf springs will not sit right in on your chassis. We offer custom bent u-bolts that can be made to fit specific measurements.

Popular Toyota leaf spring product:

1. 90-297HD  3/1 Leaves leaf spring for toyota tacoma

  • Width:2 3/8 (60)
  • PL-1 SE A:27 11/16
  • PL-1 SE B:27 11/16
  • Arch C:6 1/4
  • Pack Thck(D):1 7/8

2.90-155  2/1 Leaves Rear Leaf Spring for Toyota Tacoma

  • SRI No.90-155
  • OEM No.48220-04020
  • Width:2 3/8 (60)
  • PL-1 SE A:22 1/2
  • PL-1 SE B:28 3/4
  • Arch C:5 7/8
  • Pack Thck(D):1 1/4
  • No of Leaves:2/1

3.1997 Toyota Tacoma 2/1 Leaves for Toyota Tacoma

  • OEM No.48210-04042
  • Width:2 3/8 (60)
  • PL-1 SE A:22 1/2
  • PL-1 SE B:28 5/8
  • Arch C:5 1/2
  • Pack Thck(D):1 1/4

Popular Jeep Truck Leaf Springs

our leaf springs for jeep offer are reliable replacement springs made to have your vehicle riding like new again. Popular Models include 97-539 rear spring for cherokee and 97-565 rear springs for wrangler.

Popular Nissan Truck Leaf Springs

Popular Springs include Model 69-263 OEM No.55020-7S401 the 3/1 Rear Leaf Spring for the 2004-2006 Nissan Titan 4WD.

Popular Freightliner Truck leaf spring

The most Popular replacement springs we offer for Freightliner would be model 46-1458 OEM A16-16059-000 . This spring works with up to the 2013 Freightliner M, V and X model and includes necessary spring bolts and berlin eyes.

Popular Mazda Leaf Springs

The 63-201 Rear 3/1 Leaf Spring for your 1986-1993 Mazda B-Series will help you get back to that factory ride height and eliminate the excess pressure onto your suspension.

Choosing the right leaf spring for your Suv Pickup Truck is not always an easy process.We could design and produce any type truck & Trailer & Car parts as per customers’ drawings and samples. Tell us what you need or were expecting to find. Don’t forget to include your email address if you’d like a reply from us.—Mail To: info@tinmyautoparts.com





Posted on

How do you determine what leaf spring you have on your vehicle?

Leaf springs are commonly used in heavy duty trucks, pickups, vans and SUV’s and are a critical part of the vehicles suspension.  At some point they will reach the end of their life expectancy and will need to be replaced, but how do you determine what leaf spring you have on your vehicle?

For do-it-yourselfers, this might sound like a difficult task, but there are a couple of simple ways to identify your leaf spring.

O.E.M. Part Number

One method of identifying a leaf spring is using the O.E.M. part number.  O.E.M or stamping numbers are located on various areas of the leaf spring.

Full Taper Spring stamping numbers can most commonly be found on the end of the first leaf.  Other locations include the side, bottom or top of the clip, or at the end of the wrapper.

leaf-spring

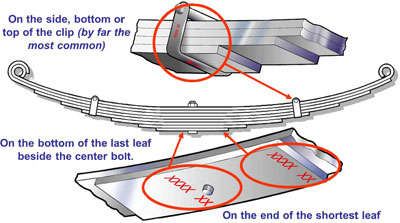

Multileaf Springs stamping numbers can most commonly be found on the side, top or bottom of the clip.  They may also be found on the bottom of the last leaf beside the center bolt or on the end of the shortest leaf.leaf-spring-1

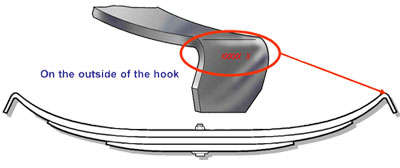

Trailer Leaf Spring stamping numbers are found on the outside of the hook.

leaf-spring-3

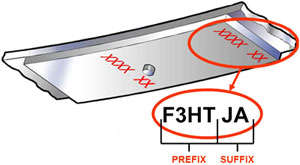

In many cases, the stamping number may contain only a part of the O.E.M. part number.  Ford usually only stamps the prefix and the suffix. The base must be added to complete the part number. For example F3HT5310JA, D7HT5560AUA or D1TA5588AA, whereas 5310 represents a front spring position, 5560 a rear position and 5588 a helper spring.

leaf-spring-4



Identification by Spring Dimensions

A second method of identifying a leaf spring is by the spring’s dimensions.  This is by far the most difficult method, but can be used if no stamping number is found or is unreadable.  Five measurements will need to be taken to determine your leaf spring model.

The first measurement is the Main Leaf Length.  Leaf springs come in different types and will require a particular way to measure that style of leaf spring.

For an Eye to Eye style leaf spring, measure from the center bolt to the center of the eye in both directions along the arch.

leaf-spring-5

For an Eye to Slipper style leaf spring, measure from the center bolt to the center of the eye and center bolt to the end without, along the arch.

leaf-spring-6

For a Slipper to Slipper style leaf spring, measure from the center bolt to the end in both directions along the arch.

leaf-spring-7

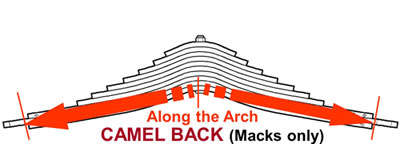

For a Camel Back style leaf spring, measure from the center bolt to the end of the main leaf in both directions along the arch.  This is for Mack trucks only.

leaf-spring-16

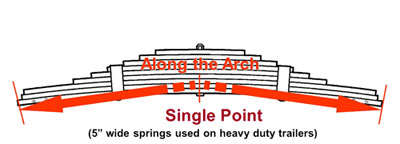

And for a Single Point style leaf spring, measure from the center bolt to the end of the main leaf in both directions along the arch.  End hole size and distance from the center bolt must be checked.

leaf-spring-15



The second measurement taken is the Leaf Spring Width.  This is measured at the center bolt from side to side across the leaf.

leaf-spring-14



The third measurement is the Pack Thickness.  This is measured at the center bolt down the side of the spring including all leaves, tow eyes, shock eyes and pads.
leaf-spring-11



The next measurement is the Leaf Spring Arch.  Again, depending on the leaf spring style, a particular measurement must be taken.

For an Eye to Eye leaf spring, use a straight edge to mark the center of the eyes and measure the arch at the center bolt.  Always measure to the top of the main leaf and do not include any pads or spacers.

leaf-spring-12

For an Eye to Slipper leaf spring, use a straight edge to mark the center of the eye and the top of the slipper and measure the arch at the center bolt.

leaf-spring-13

For a Slipper to Slipper style leaf spring, use a straight edge on the top of the slipper ends and measure the arch directly over the center bolt.

Leaf Springs

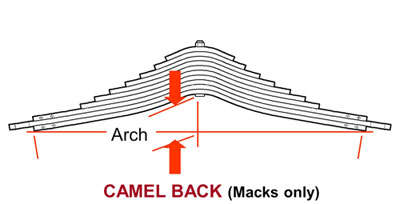

For Camel Back style leaf spring, use a straight edge to mark the top of the main leaf in both directions and measure the arch at the center bolt.

leaf-spring-10

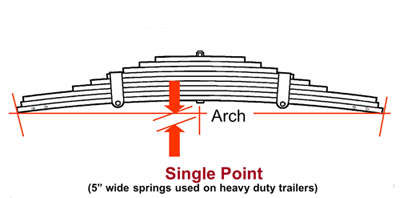

And for Single Point style leaf springs, use a straight edge to mark the top of the main leaf in both directions and measure the arch at the center bolt.

leaf-spring-9

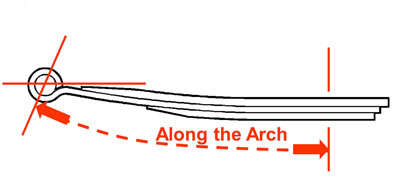

The final measurement is the Eye Leaf length.  This is measured from the center of the eye to the center bolt along the arch.

leaf-spring-8

Whether you use the O.E.M. part number or measurement method, you will have the necessary information needed to replace your leaf spring.  Let one of the suspension experts at NewTruckSpring.com help you with your leaf spring selection Send mail:info@tinmyautoparts.com visiting us online at NewTruckSpring.com

Posted on

Look at a few common reasons why leaf springs causes of failure

Ever have a leaf spring crack, become fatigued or break and wonder what the cause is? We will take a look at a few common reasons why leaf springs fail.

Loose U-Bolts

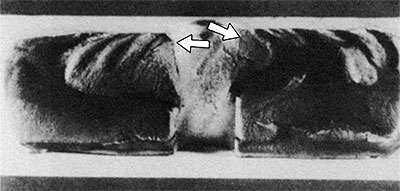

The image below shows center bolt failure due to a truck spring not having tight enough u-bolts. U-bolts, especially on newly installed truck springs should be checked periodically to verify they are tight. Even if you have a professional installer install springs on your truck, you should stop by after 500 miles and have your u-bolts inspected to make sure they didn’t come loose.

leaf-spring-failure-1

Corrosion and Fatigue

Corrosion and fatigue are typically caused by a combination of time and the elements. Numerous variables will weigh on how long your leaf spring will last before it suffers from corrosion or fatigue. How much weight you haul, what part of the country you live in, etc. will play a role in the life of your springs. Making sure salt and other corrosive materials are washed off and not overloading your truck will help prevent corrosion and early spring fatigue.

leaf-spring-failure-2

Overloading Your Truck Springs

Everyone says they never do it , but we see it all the time. Overloading is pretty self-explanatory. You have more weight in the back of your truck or you are towing a load heavier than what your truck is rated at. We all love to do it, but the negative effect on your truck springs is unavoidable. On the left image below you can see the radial shear marks from an overloaded spring. The image on the right shows distortion of the spring eye from overloading

leaf-spring-failure-3

How do you prevent overloading your truck springs? Obviously you could carry less weight or purchase a truck with a higher weight rating. If buying a new truck or hauling less weight is not an option, you could add an overload kit like a Firestone Air Spring kit, Hellwig Helper springs or a Air Lift Air Spring kit. Overload kits are designed to take some of the weight off the leaf springs and place it onto the overload kit.

Another option that is more popular with commercial vehicles it to add another piece of steel to the spring pack. This may cause the ride to be stiffer, but if you are always hauling heavier loads in a commercial setting this may be your best bet.

We do not recommend adding a new piece of steel to leaf springs that already suffer from fatigue. You are better off replacing both of your truck springs with new ones with a higher weight rating. It’s very common that we will have someone only want to replace one busted leaf in a spring pack and a few months later a different leaf breaks. If one has cracked, the others are probably in the same condition and will not last much longer.

Weld Splatter

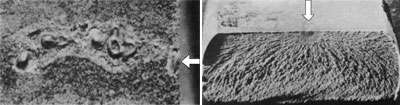

Weld splatter is more common in commercial trucks and vans that come from the factory without a bed or on motorhome leaf springs . This is caused by welding a body or accessories to your truck in the same area as your leaf springs. Just a small amount of weld spatter can be disastrous to the life of your spring. About the only way to prevent this is to inspect your springs after and make sure no one was careless with the welder.

leaf-spring-failure-4

Above are a few common reasons why leaf springs fail. There are other manufacturing reasons such as quench cracks, tight eyes, notches, incorrect temperatures, etc. that can cause failure. With today’s modern, high-tech manufacturing processes and quality control, they are not nearly as commons as they were in the past.

If you need have any questions about your leaf springs or need replacement leaf springs, call Michigan Truck Spring at info@tinmyautoparts.com. They carry OEM replacment leaf springs for everything from old corvettes to semi trucks and trailers.

Posted on

Why Choose Our LED Trailer Stop, Turn and Tail Light?

Looking for LED Trailer Stop, Turn and Tail Light for the front of your truck or SUV or trailer, but want something a little different than the standard LED Trailer Stop, Turn and Tail Light? New truck spring has your answer.

rid147110_r2_1000

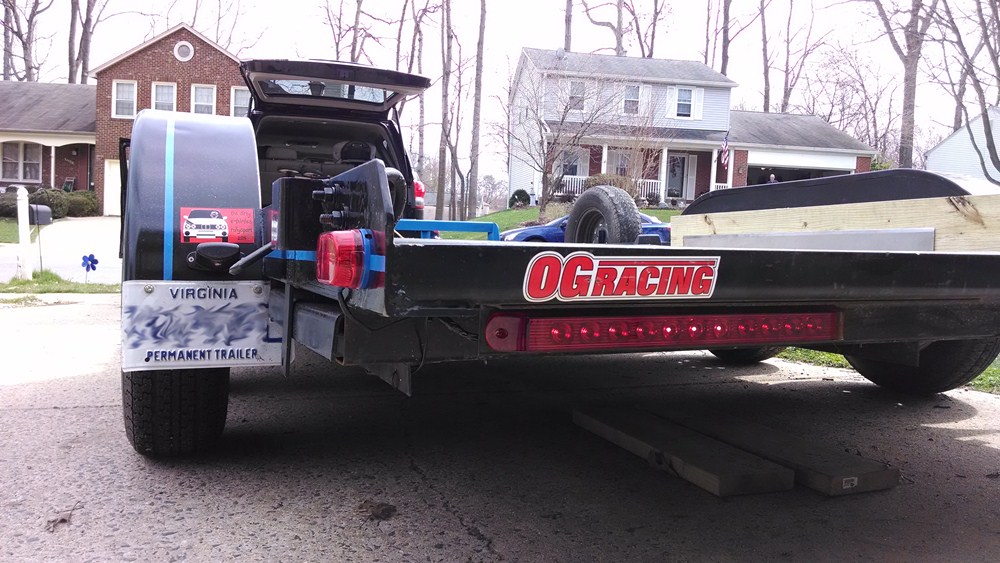

Newtruckspring.com, the makers of industry leading lift and leveling kits, has released a line LED Trailer Stop, Turn and Tail Light that are sure to make your truck stand out in a crowd. Made from durable 15-inch-thick tubular steel, these 100% bolt-on bars feature an integrated 15-inch Newtruckspring LED Trailer Stop, Turn and Tail Light to not only give your truck that extra protection up front, but will light up the night. This is a sealed, streamline LED combination stop, turn, and tail light. The LEDs in this light are super diodes for exceptional brightness and performance. This long red strip light measures 15″ long x 1-3/8″ wide x 1″ deep. The polycarbonate lens is sonically sealed to the housing to provide durability and a waterproof seal to protect the 11 super light-emitting diodes. The molded plastic housing and durable lens provide all-weather protection against corrosion. Both the lens and diodes are red on this light, which draws 0.342/.022 amps at 12.8 volts.led-trailer-stop-light

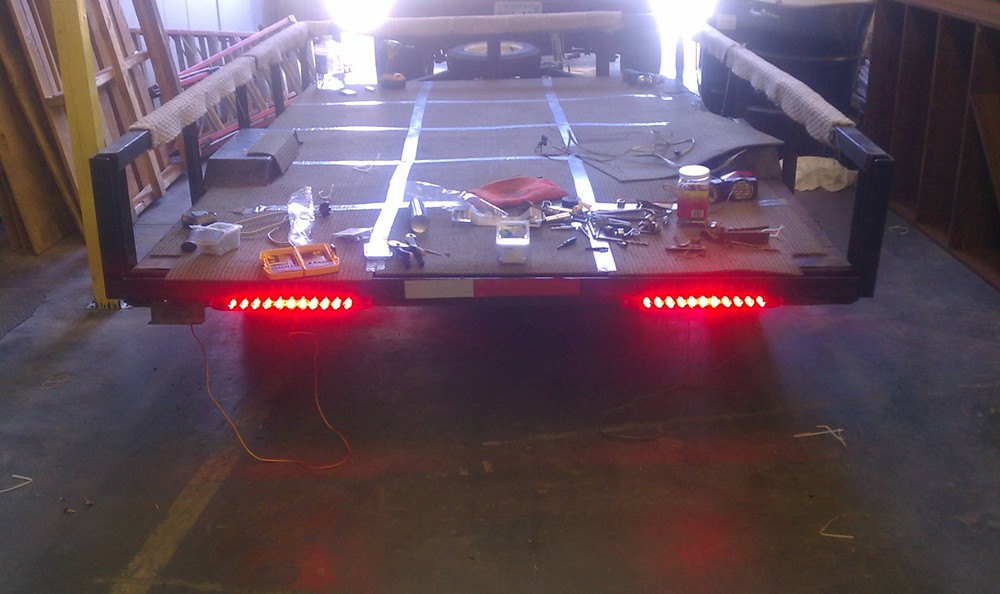

This streamlined light strip surface mounts on 16-1/8″ centers. The three-wire design includes the lead wires for power and a ground wire for mounting to any surface.

rid40805_r1_1000

  • Red light strip functions as stop, turn, and tail light
  • Sealed, waterproof housing and lens unit
  • Corrosion resistant
  • 11 Super LEDs (Light Emitting Diode)
    • Designed so the middle 3 diodes are LESS intense, while the outer 4 on either side have an extra ring around the etchings of the diodes
    • They are similar diodes but have an extra ring
  • Polycarbonate lens and diodes are both red on this light
  • Surface mounts on 16-1/8″ centers
  • Wiring design contains lead wires and a ground wire to mount to all surfaces

rid124745_r1_1000

Manufacturer Specifications

Sealed, surface mount, red LED stop, turn and tail light. Streamlined design with 11 super diodes for bright, dependable performance. Polycarbonate inner lens is sonically welded to housing for durability. All weather molded plastic housing and durable lens protect against corrosion. 3 wire design.

rid147110_r1_1000

Check out the new line of newtruckspring LED Trailer Stop, Turn and Tail Light at newtruckSpring.com or call one of our truck accessory experts at info@tinmyautoparts.com for more information.
